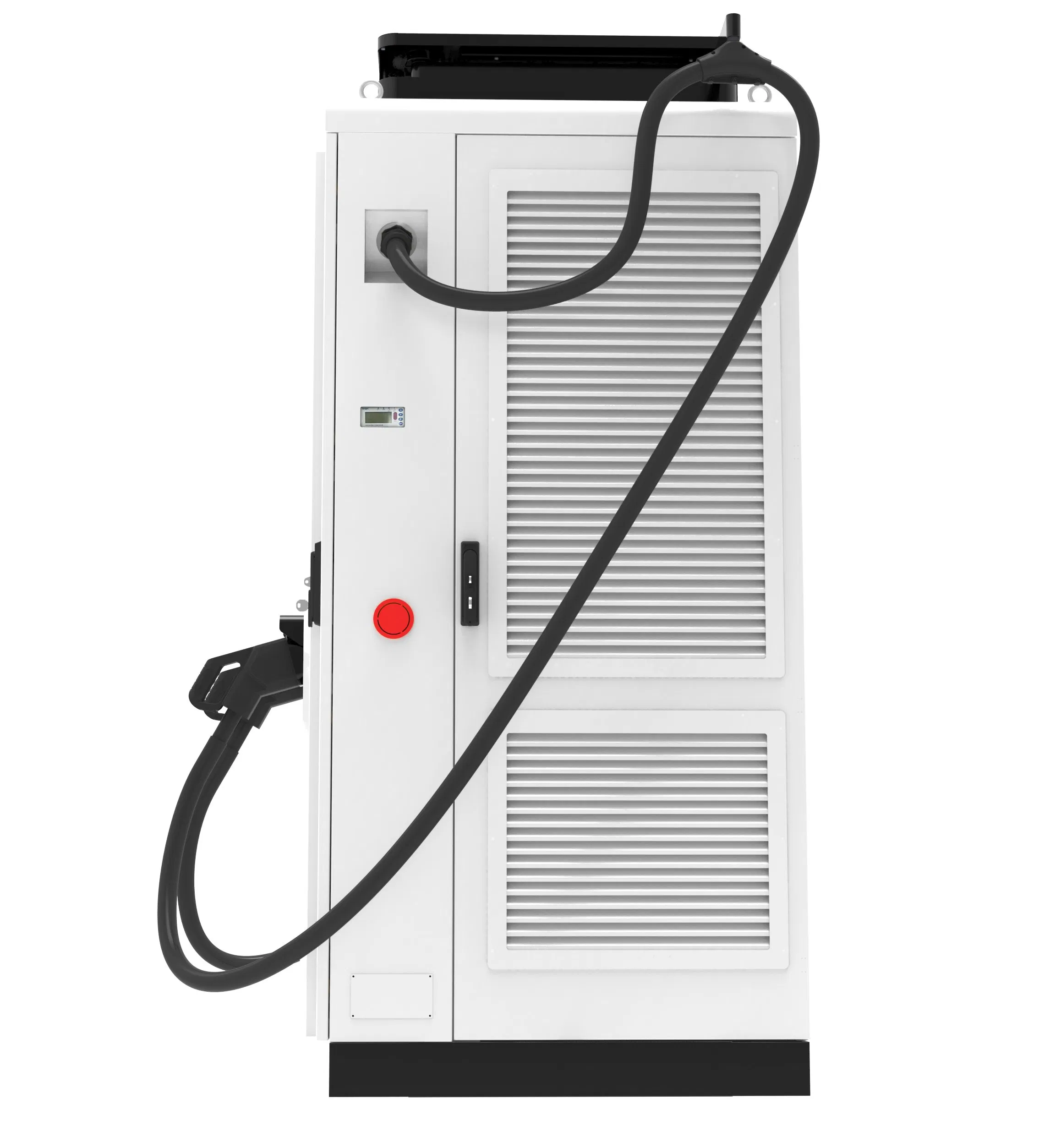

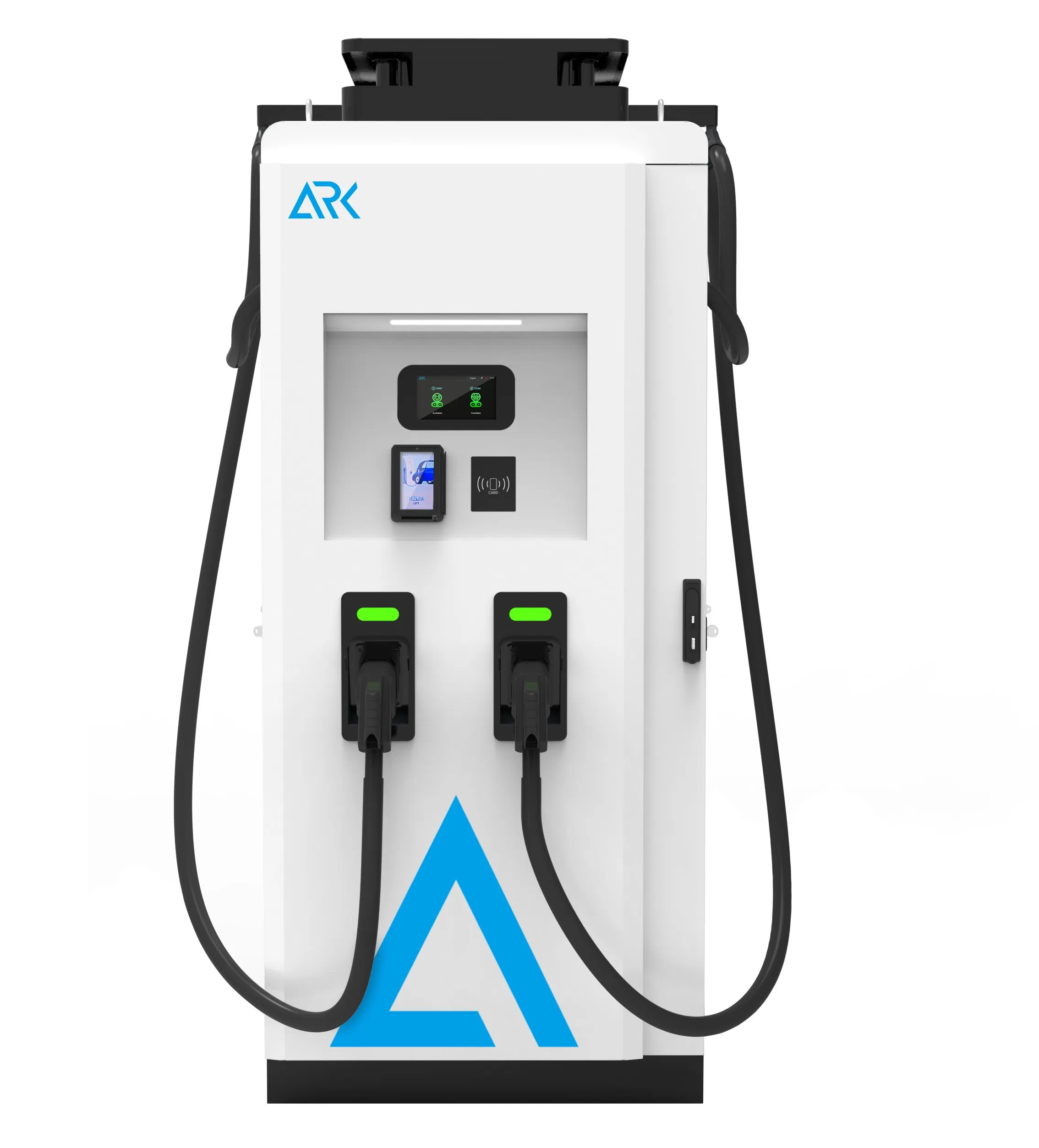

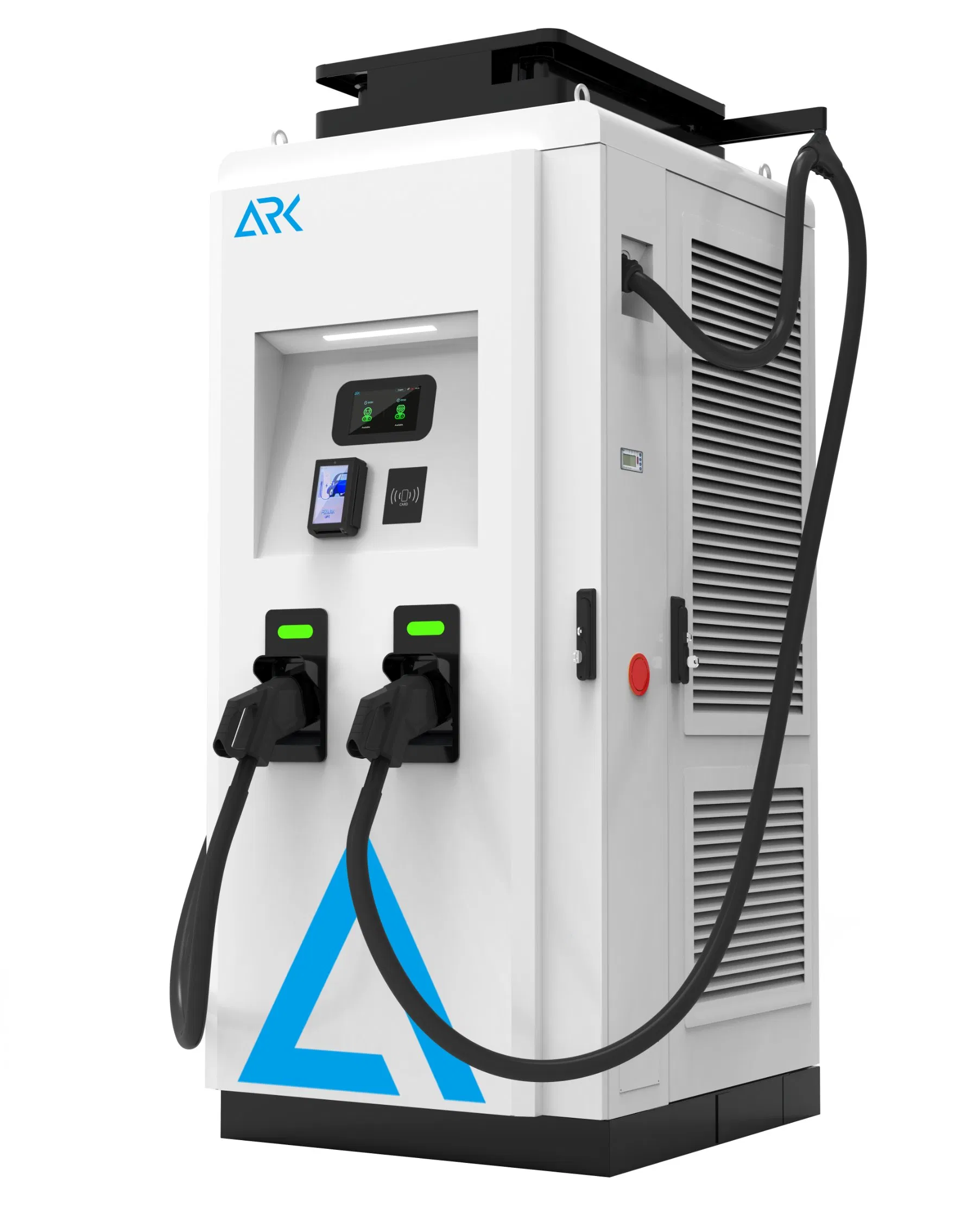

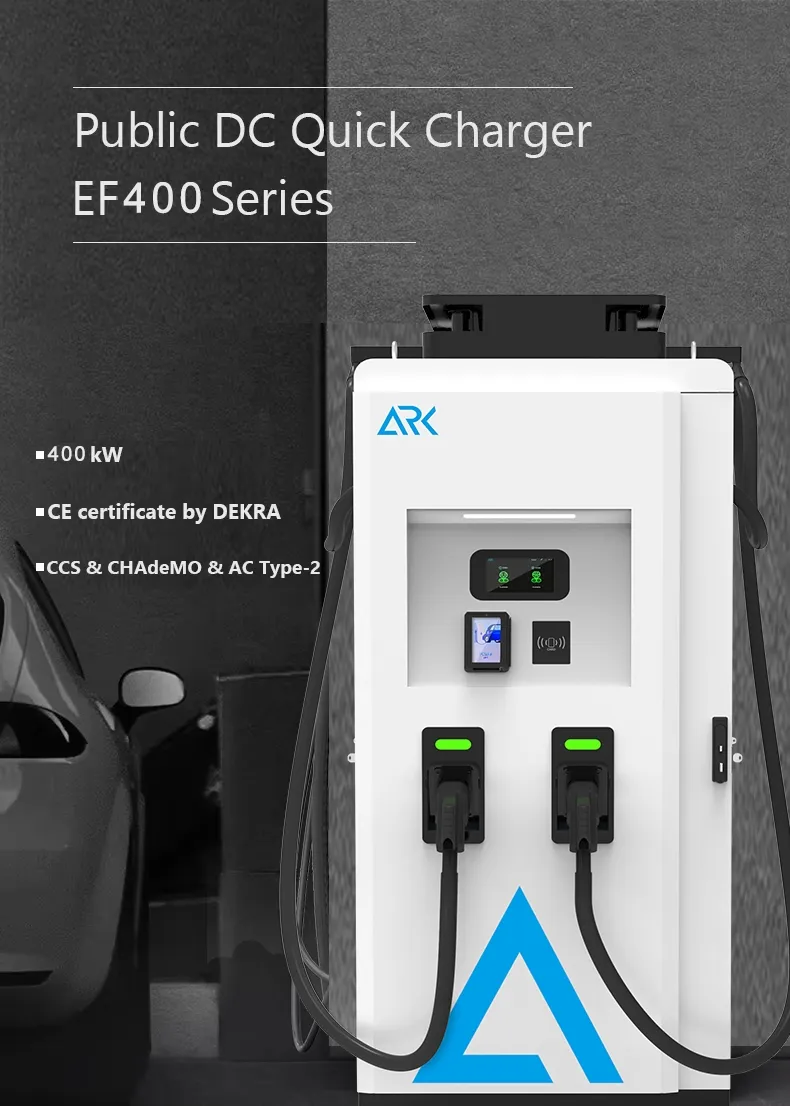

Public & Commercial Scenarios 400kw Dual CCS-2 DC Quick Charger

1 / 5

Public & Commercial Scenarios 400kw Dual CCS-2 DC Quick Charger

Customization:	Available
Connector Type:	CCS2
Installation:	Floor Type

Send Inquiry

Product Description

Basic Information

Model NO.:EF400

Location:Public Use

Interfaces:2

Start Mode:Credit Card, Mobile Remote, RFID

Specification:2070 x 850 x 910mm

Package Size:220 x 95 x 101cm

Gross Weight:600.00kg

Product Description

Technical Parameters

Model	EF400CC400
Charging Type	Mode 4, 400kW (10*40kW charging modules)
Protection Grade	IP54, IK10
Cable Routing	Bottom inlet, top outlet wiring
Net Weight	560kgs
Charging Standard	IEC 61851-1, IEC 61851-23, CHAdeMO
Certificate	CE, EN 61851, IEC 61851-21-2
User Authentication	RFID, Credit card (optional), Mobile APP

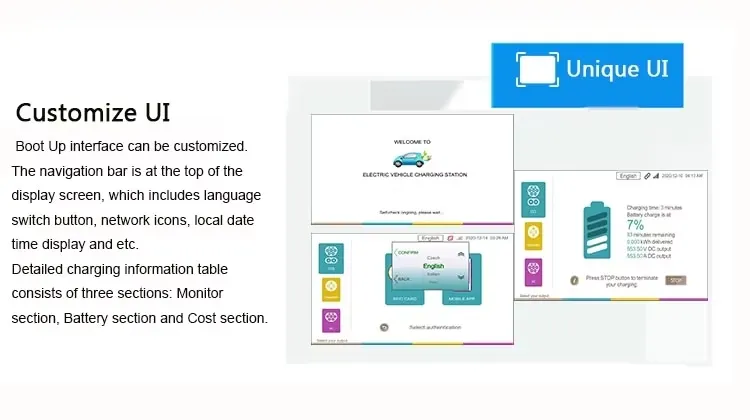

Display	10" LCD touch screen
Network Interface	Ethernet, GPRS, LTE, USB Data Export
Protocol	OCPP 1.6J (Upgradable to 2.0)
Working Temp	-30°C to +55°C
Input Voltage	400Vac +/-10%, 3-phase
Max Output Power	Single: 400kW / Simultaneous: 200kW+200kW
Output Voltage	CCS-2: 150 - 1000VDC
Output Current	CCS-2: 0 - 400A

Capability & Quality Control

Frequently Asked Questions

What is the maximum output power of the EF400?

The EF400 supports a maximum DC output of 400kW for a single connector or 200kW each when two vehicles are charging simultaneously.

Which charging standards are supported?

It is compliant with IEC 61851-1, IEC 61851-23, and CHAdeMO standards, specifically featuring CCS Combo-2 connectors.

How can users authenticate and pay?

Users can start charging via RFID cards, Mobile APP remote operation, or through an optional credit card payment terminal.

Is this charger suitable for outdoor use?

Yes, it features an IP54 protection grade and IK10 vandal resistance, making it durable for public and commercial outdoor environments.

Does the system support remote management?

Absolutely. It supports OCPP 1.6J protocol with Ethernet and LTE connectivity for seamless integration with management platforms.

What safety protections are included?

It includes over/under voltage protection, overload protection, current leakage protection, grounding protection, and lightning surge protection.
