Greening Communication Energy Storage Solutions for Sustainable Base Stations

Customization:	Available
Type:	Energy Storage
Usage:	Electric Power

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Energy Storage

Nominal Voltage

48V

Discharge Rate

High Discharge Rate

Electrolyte

Li-ion

Installation

Open Frame

Rechargeable

Chargeable

Cooling Method

Air Cooling

Power

33.12kwh

DC Bus Side

42vd-58VDC

Protection Level

IP21

Efficiency

>95%

Origin

China

✓

Product Description

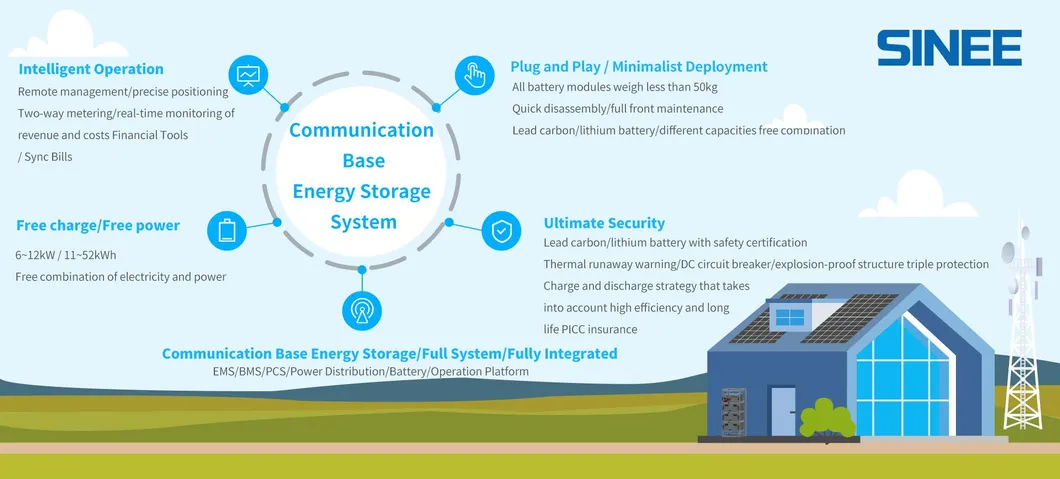

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation, while saving electricity costs and maximizing arbitrage.

★

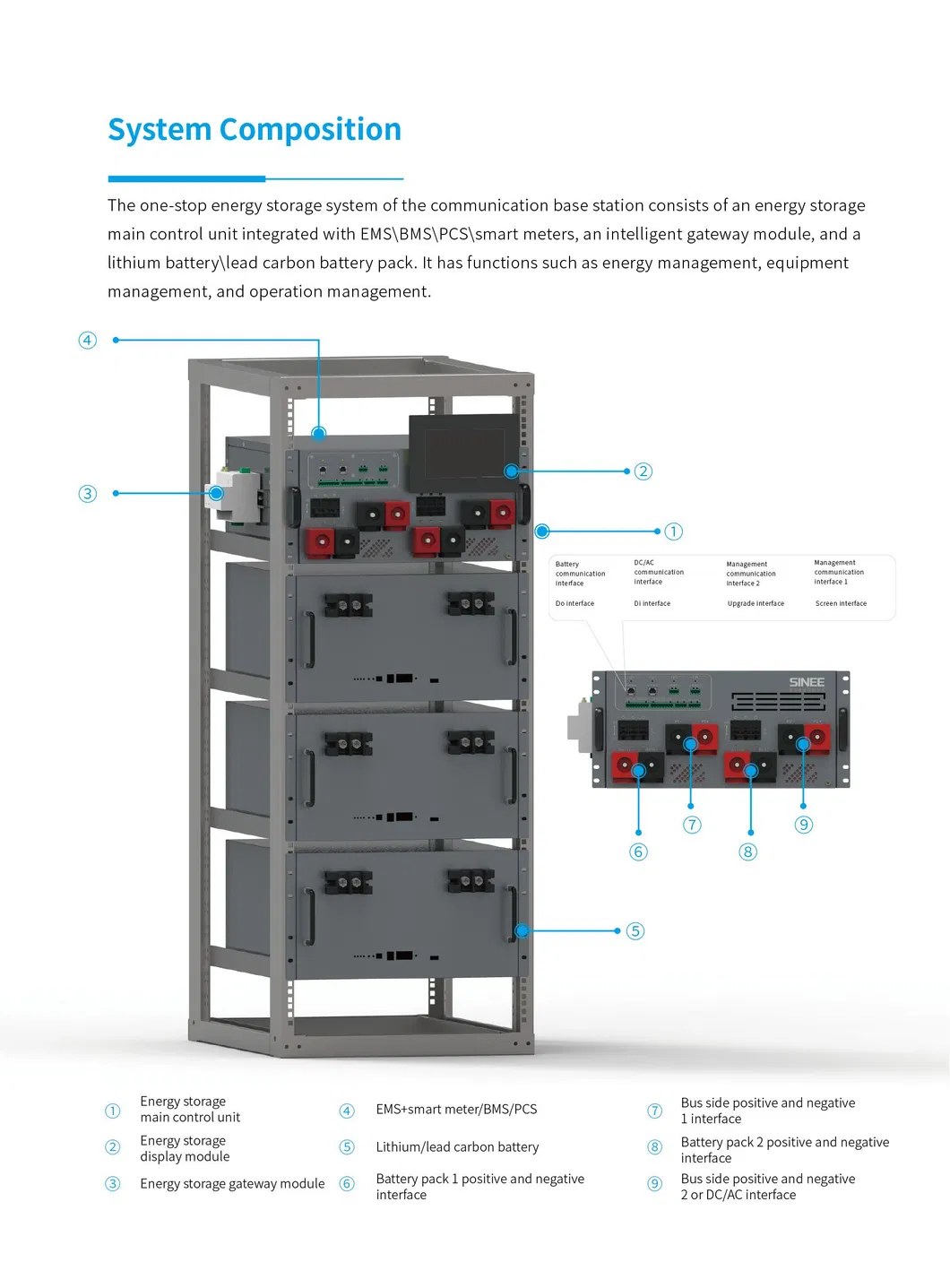

System Integration: Integrate EMS / BMS / PCS / power distribution / battery / operation platform.

★

Independent Control: Each group of batteries is independently controlled, without risk of circulation.

★

Perfectly Compatible: Compatible with mainstream batteries; supports different types and capacities in parallel.

★

Safe and Stable: Thermal runaway warning, DC circuit breaker, and explosion-proof structure protection.

★

Minimalist Deployment: Modular design enables installation in just 15 minutes.

★

Frontal Maintenance: No need for maintenance channels, freeing up base station space.

⚙

Product Parameters

Parameter Type		Lead Carbon System	Lithium Battery System
Mechanical	Weight	860kg (2V500Ah system)	370kg (3.2V230Ah system)
	Size (LWH)	10405401485mm	680489.51528mm
	Cooling	Air Cooling	Air Cooling
Electrical	Power Capacity	22kWh	33.12KWh
	Voltage Range	42VDC~58VDC	42VDC~58VDC
	Efficiency	≥95%	≥95%
	MTBF	>100,000 Hours	>100,000 Hours
Environment	Temperature	-20 to 50ºC	-20 to 50ºC
Environment	Protection	IP21	IP21

⚓

Installation Instructions

🏢

Production & Quality

Frequently Asked Questions

What is the primary purpose of this energy storage system?

It is designed for communication base stations to perform peak shaving and valley filling. By charging during low-load periods and discharging during peak demand, it significantly reduces electricity costs.

How long does the installation process take?

Thanks to the modular design, the system supports quick disassembly and assembly. A standard installation at a base station can be completed in approximately 15 minutes.

Is the system compatible with third-party batteries?

Yes, the system is highly compatible with mainstream batteries on the market and allows for the parallel use of batteries of different types, capacities, and batches.

What safety features are included in the design?

The system features a triple protection design, including thermal runaway warnings, integrated DC circuit breakers, and an explosion-proof structural design to ensure stable operation.

Can I monitor the system status remotely?

Yes, the system supports intelligent operation with remote monitoring capabilities, allowing users to calculate energy storage revenue and monitor equipment status across thousands of stations.

What maintenance is required for the units?

The system supports full frontal maintenance, meaning no additional maintenance channels need to be reserved, which helps save valuable space within the base station.
